Plug-N-Play Replacement Twist Grip Sensor - For 08-13 HD TBW Models

For 08-13 HD TBW Models

• UPC: 810088716713

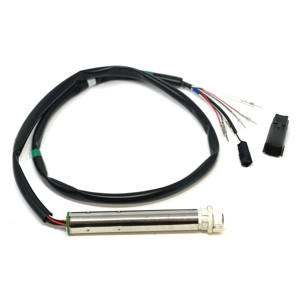

NAMZ Replacement Twist Grip Sensor for all Throttle-by-Wire motorcycles from 2008 through 2013 ONLY, 100% plug-n-play.

• Hardwired like OEM CVO versions from the sensor to the main connection on the harness, same length as OEM
• Terminals are pre-installed using MIL-SPEC crimping presses
• Includes OEM (HD# 72188-07BK) male 6-position connector for installation after the harness is routed through the handlebar
• Includes installed OEM (HD# 72902-01BK) male 2-position heated grip connection
• NOTE: be sure that your grip is mated snugly against the gear drive to prevent damage
• The male connector is NOT installed so you can fish the wiring harness through your handlebar
Connector Pinout:
• 1 - BLACK
• 2 - WHITE
• 3 - RED
• (Blue tape around bundle) 4 - BLACK
• (Blue tape around bundle) 5 - WHITE
• (Blue tape around bundle) 6 - RED
