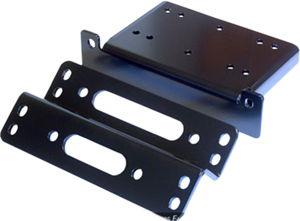

Winch Mount - For 08-13 Kawasaki KRF750 Teryx

For 08-13 Kawasaki KRF750 Teryx

• Type: Winch Mount
• UPC: 705105364650

• Plate constructed of 10 gauge, grade 50 steel
• Fairlead bracket constructed of 1/4" steel
• Metal bead blasted before they are powder coated for the best possible finish prep and durability
• Very easy to install
• Complete installation instructions and mounting hardware included
• 100% made in the USA
• Roller fairlead and winch not included.
• Designed to work with the following winches:
• KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
• KFI: AM-25 / AM-35 / AS-25 / AS-35 / AS-50 / AS-50w
• WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S
• WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
• WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30 / RT40 / XT40
• WARN: Vantage 2000-3000 lb / Provantage 2500-3500 lb
• WARN: Vantage 4000 lb / Provantage 4500 lb
• RAMSEY: ATV2500 / ATV3000
• SUPERWINCH: Terra25 / Terra35 / Terra45 / Terra 2500 (SR) / Terra 3500 (SR) / Terra 4500 (SR) / A3500 / LT2000 / UT3000 / LT2500 / LT3000 / LT4000 (SR) / LT4000ATV / LT4000UTV
• MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
• MASTER LOCK: 1500 lb #2955AT requires roller fairlead #4505-0953 with a 4.875" bolt pattern
• CYCLE COUNTRY: Work Power 1500 and 2500 / Powermax 2500 and 3500
• BADLAND, CHAMPION: 2-hole, standard, and wide winches
• CHAMPION: 14001 and 14061 / 14051 / 14560
• KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
• KEEPER CORP. TRAKKER: KT2000 requires roller fairlead #4505-0953 with a 4.875" bolt pattern
• SMITTYBILT: XRC 2.0 requires roller fairlead #4505-0953 with a 4.875" bolt pattern
• SMITTYBILT: XRC 3.0 / XRC 4.0
• XGEAR: X3000 / X4000 4-holestandard (3.00" x 4.875" bolt pattern)
• VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series) with 3.00" x 4.875" or 3.00" x 6.600" bolt pattern mount-up
• Traveller: 1078311
• Traveller: 1078088 / 1078302 require roller fairlead #4505-0953 with a 4.875" bolt pattern
• QUADBOSS: RP25 / RP35
• Possibly many others with standard mounting patterns such as 4-hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern) or 4-hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern) or 2-hole (3.10" with rollers that are 4.875" bolt pattern)
