Replacement Parts - Ultrhk Xtv Latch Kit/Lockng Pn

Ultrhk Xtv Latch Kit/Lockng Pn

• UPC: 012748095613

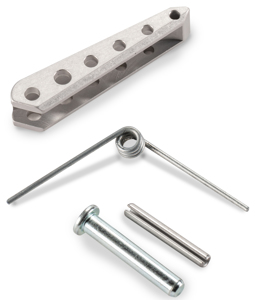

The Factor 55 UltraHook XTV Latch Kit and Locking Pin is a replacement part for Factor 55 winch products. Designed for UTV and ATV applications, the UltraHook XTV is one of the safest winch hooks available. It features a closed-system shackle mount hole machined into the hook body, a safety latch retraction pocket for a clear throat opening, and an integrated secondary safety latch locking feature. The latch locking pin is stored within the hook body and can be inserted at the tip to secure the latch in place. Additional features include EPDM rubber pads to protect the fairlead, a titanium double shear pin, and a finger grip for proper hook orientation. The hook can be stored against the fairlead to prevent metal-to-metal contact with either hawse or roller-style fairleads. Specifications: - Shackle pin mounting hole fits screw pins from 5/8" shackles (3/4" diameter pins) - Compatible with rope and cable up to 5/16" diameter - 7/16" diameter 6AI-4V grade V titanium double shear pin - Maximum rated load: 10,000 lbs - Breaking strength: 21,000 lbs - Weight: 21 oz - Dimensions: 5.75" x 3.4"
