Replacement Parts - Titnum Pin Ultrahk/Flatlnk Xtv

Titnum Pin Ultrahk/Flatlnk Xtv

• UPC: 012748098669

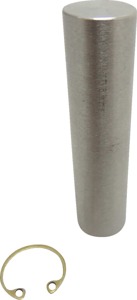

The Factor 55 Titanium Pin is a replacement part for the UltraHook XTV and FlatLink XTV winch shackle mounts. This kit includes a titanium double shear pin and the corresponding internal snap ring. The UltraHook XTV is a high-strength UTV/ATV winch hook designed for safety and durability. It features a closed-system shackle mount hole, a safety latch retraction pocket for a clear throat opening, and an integrated secondary safety latch locking function. Additional features include EPDM rubber pads for fairlead protection and a finger grip for proper orientation. **Specifications:** - Shackle pin mounting hole fits screw pins from 5/8" shackles (3/4" diameter pins) - Compatible with rope and cable diameters up to 5/16" - 7/16" diameter 6AI-4V grade V titanium double shear pin - Maximum rated load: 10,000 lbs - Breaking strength: 21,000 lbs - Weight: 21 oz - Overall dimensions: 5.75" x 3.4" - Hard anodized for durability
