FlatLink XTV Winch Line Shackle Mount - Red

Retail Price: $170.00
You save: $11.05 (7.000000000000001%)
Our Price: $158.95

Add to Cart:

Please select a vehicle to verify part fitment

Details

Model: 00070-01
Shipping Weight: 0.9lbs
6 Units in Stock
Manufactured by: Factor 55

Description

Color: Red
Type: Hook
UPC: 012748093824

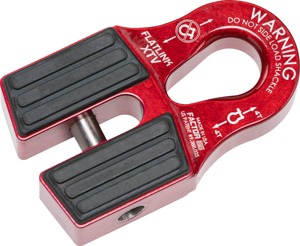

The FlatLink XTV allows UTV and ATV winch owners to replace the conventional winch hook with a shackle/D-Ring. Winch hooks can allow strap ends to escape during typical loose/tight cycles of a winching recovery. Screw pin shackles do not allow strap loops to escape due to the secure screw pin attachment. The FlatLink XTV does not require splicing and is compatible with steel cables or synthetic ropes up to 5/16 inches. The cable eye is retained in the FlatLink XTV by a 7/16 inch diameter titanium double shear pin and internal snap ring. It is easily installed in minutes. The EPDM Rubber Guards protects alloy fairleads and is securely attached to the FlatLink XTV with 4 barbed tips.

The FlatLink XTV stows neatly against either roller or Hawse type fairleads and is designed to be used with common standard 1/2 - 5/8 inch shackles. MADE IN THE USA, the FlatLink XTV is constructed of 6000 series billet aluminum and 6Al-4V titanium and is anodized/powder coated in 5 different colors. The FlatLink XTV has a max load rating of 8000 pounds and an ultimate failure of 28,000+ pounds.

This product is compatible with Closed System Winching®, a technique that uses rigging comprised entirely of closed-link hardware. With Closed System Winching you get the extra security and confidence needed to tackle the most demanding winch recoveries.

Precision machined from 6000 series aluminum and 6Al-4V titanium
Weight - 12.7 ounces
Max load rating : 8000 pounds
Ultimate failure : 28,000+ pounds
Fits steel cables and synthetic winch ropes to 5/16 inch diameters
EPDM Rubber Guard protects alloy fairleads and cushions line stowage
Simple snap ring removal for shear pin
Oval hole opening connects to the pin or bow end of 1/2 or 5/8" screw pin shackles/D-Rings
Oval hole opening connects to the pin ends of 3/4" screw pin shackles/D-Rings
Stops hook rattle and fairlead damage
U.S. Utility Patent No. 9,388,025
Foreign Patents Pending
