M-8 Oil Pump Alignment Tool

This product is listed from our supplier by manufacturer part number. Please verify this is the correct item before ordering. Picture may be stock image from supplier. Please contact us for any assistance to ensure this is the correct part for you. We have helpful and knowledgeable staff standing by to assist you.

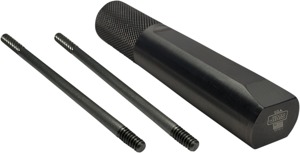

The JIMS Milwaukee-Eight Oil Pump Alignment Tool is the perfect aid to either assemble as individual components with supplied studs or as an assembly with the alignment dowel. Proper assembly of the cam chest is one of the most common tasks performed on Harley-Davidson engines. Assembling the cam support plate along with oil pump, gerotors and pump cover to perfectly align with the pinion shaft flat, all while properly seating the oil pump O-ring in the crankcase can be a challenge for one set of hands. This tool was designed to help assemble the complete cam chest correctly, in a quick and efficient manner.
