For 15+ Yamaha R1

• Color: Black
• dB level: 90 dB @ idle, 106.5 dB @ 5000 RPM
• End cap material: Carbon fiber
• Installed Weight: 4.4 lbs (14.4 lbs savings)
• Material: Carbon Fiber
• Mid pipe material: Titanium
• Mounting Style: Slip-On
• Muffler Quantity: 1
• Muffler sleeve material: Carbon fiber
• Sound Level @ 5000 rpm: 106.5
• Sound Level @ Idle: 90
• Type: Muffler Assembly
• Weight: 4.4 lbs

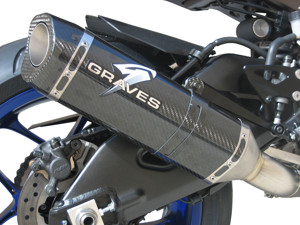

Graves Motorsports Yamaha R1 Cat Eliminator Titanium Exhaust System with carbon fiber silencer. GMS Exhaust systems are designed for the elite rider seeking top of the line performance, fit, finish and value.This R1 exhaust system was developed using the same technology that has powered Monster Energy Graves Yamaha riders to 7 straight consecutive Moto America / AMA Superbike championships along with numerous 600cc titles.This product is intended for closed course competition use only. Use of this product for any other purpose is strictly prohibited.

• New Diamond Shaped Silencer Design (Carbon Fiber Cans with Carbon End Cap) designed to match the R1's body line.
• Silencer mounts directly to OEM rearset bracket using a stealth strapless mount built into the setup.
• Constructed from Aerospace grade hi heat Titanium alloys
• 1 Auto Tuner Style Lambda sensors comes standard (OEM dual sensor mounts up front are eliminated for a smoother flowing exhaust. When using any Graves performance system on the 15-16 R1 Flash Tune products are recommended to enhance the bikes performance everywhere. The most effective tune on this setup does not utilize the stock lambdas at all.
• Advanced welding process showcases laser perfection welds
• 14.4lbs lighter than stock
• Performs like a full system, looks like a full system at 50% the cost.

This Graves Motorsports Cat Eliminator exhaust is designed for the racer on a budget seeking the closest performance exhaust to a full race system. Material diameters, lengths, the silencer core size and length are optimized for maximum power output throughout the throttle and RPM range. Combined with Graves’ exclusive flash tune map this system produces a solid 15+ HP in the midrange and 11+ on the top of the horsepower charts. This tune also removes any computer error codes the bike will have when installing performance exhausts.Grave's uses the same 1.00 MM thick wall high heat grade Titanium tubing used on their Superbikes. This material is designed special for maximum durability and oxidation resistance up to 800° Celsius / 1472° Fahrenheit. It is designed to live at almost twice the temperature of normal Grade2 Titanium. The tubes are precision bent and cut with the latest equipment available. The tubing is then welded in fixtures designed so that repeatability is second to none.It comes with a single Lambda receiver bung for on track data logging or Dyno tuning. The spring tabs are made from 4MM thick Titanium wire for long life. The silencer is one piece with the tail pipe welded to the deep draw tapered Titanium entrance cap and attaches to the collector with a 60.5 MM machined Titanium joint for a perfect fit every time. The Collector attaches to the stock mount under the frame with a Titanium tab that has an 8MM machine Titanium nut welded to the tab. The silencer is hung with a strapless an Aluminum bracket / anodized black and built into the silencer. The silencer sleeve is made of Carbon fiber that attaches to the titanium end caps with stainless aircraft grade rivets and Titanium silencer bands. The inner core tube is made of stainless that slips over the entrance and into the exit cap that is a stamped from Titanium and welded to a 60° slash cut Titanium tube covered with a Carbon Fiber beauty cover.
