Top End Piston Kit 12:1 Compression - 96.00mm Bore (STD) - For 05-17 Honda CRF450X

For 05-17 Honda CRF450X

• Bore - Actual: 96.00mm
• Bore - Oversize: STD
• Bore Size: 96.00 mm
• Compression Ratio - Actual: 12:1
• Displacement: 450cc
• Dome Type: Domed
• Skirt Coating: ArmorGlide
• Stroke: 62.1mm
• Type: Piston Kit
• UPC: 193564154071

Includes The Following Components
• 4820M09600 - Honda CRF450R'02-08/450X'04-17 12:1 CR
• 9600ZV - 96.00 mm Ring Set 1mm x 2mm
• CW19 - 19mm Round Wire Locks - Set of Two
• Ring - Set
• S660 - PistonPin 19mm x 1.986" NonChromed SW
• W6445 - TopEndGsktKit Honda CRF450X '05-17 97mm

---

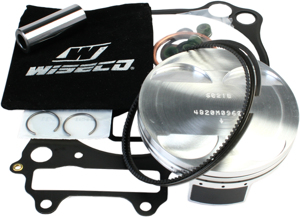

• Top End kit includes: piston, rings, wrist pin, clips, top end bearing (2 strokes), and gasket kit
• Each piston is built from race proven designs that are chosen by the top race teams in all forms of racing including Supercross, Motocross, GNCC, Superbike, and more
• Dedicated forgings used for superior strength to weight ratio utilizing aerospace alloy
• High Performance ring kit and alloy pin included with each piston kit for extended life and sustained power

Wiseco's complete top end Piston Kits are offered for nearly every popular motorcycle application. These kits contain everything you need to complete your rebuild the right way, the first time. High quality parts specifically chosen by us to match our forged pistons are included in this kit for easy one stop shopping.
