Top End Piston Kit 10:1 Compression - 66.50mm Bore (+1.00mm) - For 92-02 Honda XR200R

For 92-02 Honda XR200R

• Bore - Actual: 66.50mm
• Bore - Oversize: 1.00mm
• Compression Ratio - Actual: 10:1
• Displacement: 201cc
• Note: Cylinder boring required
• Stroke: 57.8mm
• Type: Piston Kit
• UPC: 193564153692

Includes The Following Components
• 2618XC - 66.50 mm Ring Set
• 4156M06650 - Hon XR/XL185,200, ATC 185,200 10.25:1 CR
• CW15 - 15mm Round Wire Locks - Set of Two
• Ring - Set
• S522 - PistonPin 15mm x 2.205" NonChromed TW
• W5661 - TopEnd Gskt Kit Honda XR200 '92-02

---

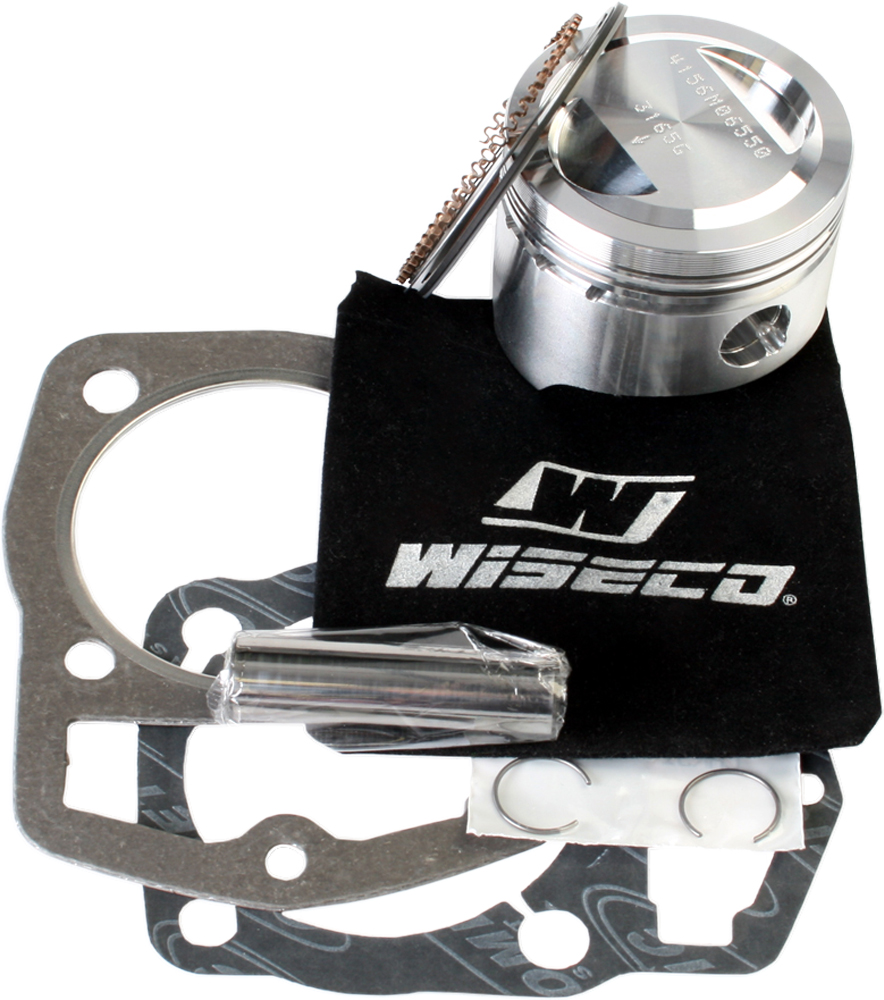

• Top End kit includes: piston, rings, wrist pin, clips, top end bearing (2 strokes), and gasket kit
• Each piston is built from race proven designs that are chosen by the top race teams in all forms of racing including Supercross, Motocross, GNCC, Superbike, and more
• Dedicated forgings used for superior strength to weight ratio utilizing aerospace alloy
• High Performance ring kit and alloy pin included with each piston kit for extended life and sustained power

Wiseco's complete top end Piston Kits are offered for nearly every popular motorcycle application. These kits contain everything you need to complete your rebuild the right way, the first time. High quality parts specifically chosen by us to match our forged pistons are included in this kit for easy one stop shopping.
