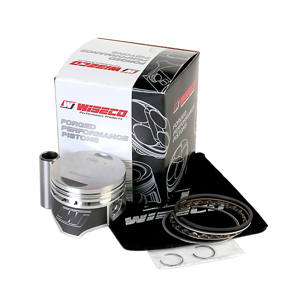

Piston Kit 10.25:1 Compression - 50.00mm Bore (STD) - For 13-15 Honda CRF110F

For 13-15 Honda CRF110F

• Bore - Actual: 50.00mm
• Bore - Oversize: STD
• Compression Ratio - Actual: 10.25:1 CR
• Skirt Coating: ArmorGlide
• Type: Piston Kit
• UPC: 193564138743

Includes The Following Components
• 1969XE - 50.00 mm Ring Set
• CW13 - 13mm Round Wire Locks - Set of Two
• Ring - Set
• S592 - PistonPin 13mm x 1.535" NonChromed SW

---

Wiseco™s detailed skirt shapes and profiles are very specific to each application. Variable cam programming software developed in house allows Wiseco to produce high-performance shapes unique to only Wiseco. The skirt shape (barrel/cam) is one of the most functional areas on the piston, and provides stability and smooth operation in the cylinder bore. Stability is important for proper ring seal, reduced friction, and quiet operation. Each skirt shape is designed for a specific running clearance, based on coefficient of thermal expansion of the piston alloy. Some forging alloys expand more than casting alloys, but each Wiseco piston is designed with the proper installed clearance to produce the most power, least wear, and best seal at running temperature, for each application. Comparing installed clearances on cast vs forged parts is not indicative of the running clearance at temperature. Wiseco engineers have a strong background in all forms of racing applications, and produce the best shapes and designs in the industry.
