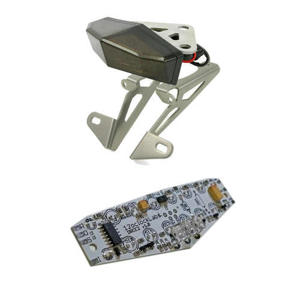

Smoke Edge2 Tail Light/Turn Signal & Upgrade Processor Board - Yamaha WR250R/X

Yamaha WR250R/X

• Bracket: Includes light bracket, license plate and flasher brackets
• Connectors: Includes OEM connectors for Yamaha WR250R/X
• Lighting Technology: LED
• LP bracket spacing: 4.75" (Japanese) see description
• Processor board: Includes 12 o'clock labs upgrade processor board
• Processor installation: Contact us for processor board installation
• Tail light: Includes DRC Edge2 Smoke Tailight / Turn Signal
• Type: Tail Light Assembly

License plate bracket spacing: The spacing for the license plate brackets is 4.75", fitting Japanese sized license plates. US sized license plate spacing is 5.75". Typically customers will drill holes in US license plates.


DRC Edge2 Tail Light:

• 16 high-intensity red LEDs are used for the tail / stop light, and 3 white LEDs for illuminating the license plate.
• Reduces electric power consumption. Offers a longer operating life.
• Detachable lens.
• Lens colors available: red and smoke.
• Plug type terminals are included for installation.
• Works on 12V AC/DC.

12 O'clock Labs Upgrade Processor Board:

• 5 user selectable turn signal patterns
• Automatic safety brake pulsing with Enable / Disable
• Superbright LED's; over 560,000mcd light output at maximum brightness
• Lower current draw than a standard bulb; with an average 4.65watts at full brightness.
• Includes 34 inch pre-attached wiring harness
• Includes 30 inch wire harness jacketing
• 3 year product replacement warranty
• Made in the USA


This unit gives programmable integrated turn signals to the Edge / Edge2 tail light, as well as safety brake pulsing, a drop in replacement for the OEM led board, the unit also has brighter led's than the stock edge2 board, and is designed with 500,000 life hour capacitors for exceptionally long life operation. The upgrade board is designed to replace DC voltage tail lights (most are DC). If your tail light operates from AC voltage, you can move your tail light supply wires to be feed after the regulator / rectifier on your motorcycle, or add any aftermarket voltage regulator / rectifier.
