6 Shooter Trigger Accessory Control System - for Side-by-Sides

for Side-by-Sides

• California Prop 65 Warning: Cancer and Reproductive Harm - https://www.p65warnings.ca.gov/
• Color: Black
• Model: Six-Shooter
• Name: Switch Control Module
• Type: Accessory
• UPC: 810668031014

Save time, simplify your install and get out on the trail. The Trigger System eliminates the need to run wires under the dash or through the firewall of a vehicle when wiring accessories. It adds functionality such as a battery-powered RF remote control for activating installed accessories from outside the vehicle, dimming and flashing functions for lighting, fused circuits with LED indicators to notify of blown fuses and more. The included RF remote has backlit rocker switches and can be programmed for security or use with additional remotes. It utilizes a universal mounting system to accommodate numerous mounting surfaces. Several Trigger control boxes and remotes can be used together to control up to 24 accessories. Another option for control is the Trigger Bluetooth App that will allow control of the on/off, dimming or flashing functions when used with LED or conventional lighting.

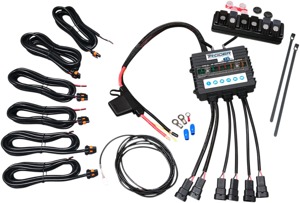

6 Shooter Control Box:

• Six channels, 2x 30-Amp circuits, 2x 10-Amp circuits, 2x 5-Amp circuits, all solid-state
• 30-Amp, 10-Amp and 5-Amp fuses built-in with waterproof cover
• 100-Amp fuse installed on positive input wire for protection
• Programmable RF remote with backlit rocker switches
• Built-in Bluetooth battery voltage monitor
• Manual on/off buttons on top of case
• Bluetooth control from phone or tablet app
• Waterproof case design withstands temps up to 250 degrees F and below freezing
• LEDs to indicate relay on and if fuse is blown; blue for circuit on, red for blown fuse
• 12- to 24-Volt input by three wires: ground, switched positive, battery positive
• Low-voltage shut down if battery voltage gets low
• DIN connector built-in for manual control with conventional toggle switches; harness sold separately
• Three-year limited manufacturer's warranty

RF Remote:

• Universal mount designed for flat or round surfaces or roll bars
• Weatherproof design
• 2.4 GHz frequency
• Custom switch labels included
• Replaceable battery power and/or 12-Volt hardwired optional
• When hardwired, provides a color changing option adjustable from within app
• Individual switch backlights activate when docked in powered remote base

App Control:

• Apps for both Android and iOS with simple interface for turning on/off four or six channels
• Dimming and strobe functions in addition to on/off
• Allows customized names for each channel
• Battery voltage shows on screen (Six Shooter only)
• Control backlight color in the RF switch pad (Six Shooter Only)
• Set battery low-voltage notifications

Harnesses:

• Kit includes 8 ft wiring harness for each channel in sturdy vinyl shrouds with a mating connector to the control box on one end and blank wires on the other
• Two 12-gauge harnesses, two 14-gauge harnesses and the Six Shooter includes two 18-gauge harnesses as well
