Ram Kit - Motorcycle Fork Stem Mount w/ Finger-Grip Phone & Accessory Holder

• UPC: 793442935169

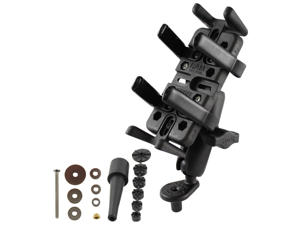

The RAM-B-176-UN4 consists of a fork stem base, double socket arm, diamand adapter base and high strength universal Finger Grip holder. This one of the cleanest ways to mount small electronics on your motorcycle. Simply slide the assembly into the hole of the stem and tighten the machine screw to create a tight fit. The universal Finger Grip holder is designed to hold a large amount of cell phones and electronic devices. The holder comes with (3 sets) of four flexible rubber coated fingers placed along sides to grip your device. The fingers open by squeezing the ends to open the small finger arms. The bottom of the holder includes a back plate that adds support to the device being held by the mount.

This part is designed to fit into the cylindrical bore wall of fork stems and will work with stems that measure from 12-20mm and 28mm or .5"-1.10" at the following intervals:

Metric	Standard
12mm	.5"
14mm	.55"
16mm	.63"
18mm	.71"
20mm	.79"
28mm	1.10"

This mount is designed to hold the following devices:
Cell Phones (check measurements below for dimensions) 2-Way Radios GPS Devices Works with OtterBox (Defender, Commuter, Impact) Cases, Phones with Bumper, Twisted Metal Case and More Perfect rugged solution for the Blackberry, HTC Evo, Droid X, iPhone, and More Use on your Motorcycle, ATV, UTV, Car, Boat and More Height Dimensions:
Minimum with Top and Bottom Plates: 5.25"
Maximum with Top and Bottom Plates: 6.0"
The top and bottom plates can be removed for larger devices.

Spine Plate Dimensions:
3" Width x 3" Height

Using Short Arm Side Clamps:
Maximum Depth: 0.75"
Minimum Width: 1.25"
Maximum Width: 3.0"

Using Medium Arm Side Clamps:
Maximum Depth: 1.25"
Minimum Width: 1.5"
Maximum Width: 3.5"

Using Long Arm Side Clamps:
Maximum Depth: 1.6"
Minimum Width: 2.25"
Maximum Width: 3.5"

Material:
High Strength Composite & Powder Coated Marine Grade Aluminum

Ball Size:
1" Rubber Ball "B" Size

Compatible Motorcycles:

BMW	S1000RR	09-13
BMW	R1200ST	05-07
Can-Am	Spyder RT-S SE5	All
Ducati	1199 S Panigale	11-13
Honda	CBR250R	11-13
Honda	CBR1000RR Fireblade	08-13
Honda	CBR1100XX	96-07
Honda	CBR600F	95-98
Honda	CBR600F4	99-00
Honda	CBR600F4i	01-06
Honda	CBR600RR	03-06
Honda	CBR900RR Fireblade	96-03
Honda	CBR929	00-01
Honda	CBR954	02-03
Honda	ST1300 Pan European	03-08
Honda	VFR750	94-97
Honda	VFR800	98-13
Honda	VFR800 Interceptor	98-01
Honda	VFR800 Interceptor VTEC	02-06
Honda	VFR1200F	09-13
Honda	VTR1000F Superhawk	97-05
Kawasaki	1400GTR	07-13
Kawasaki	636	03-06
Kawasaki	650R Ninja	06-13
Kawasaki	ZX10R	04-10
Kawasaki	ZX12R Ninja	00-05
Kawasaki	ZX14R	06-11
Kawasaki	ZX6R	98-99
Kawasaki	ZX6R	00-02
Kawasaki	ZX6R	09-12
Kawasaki	ZX6R 636 Ninja	03-06
Kawasaki	ZX6RR	00-06
Kawasaki	ZX9R Ninja	94-03
Kawasaki	ZZR1200	02-11
Kawasaki	ZZR1400 Ninja	06-11
Kawasaki	ZZR600	05-07
Suzuki	GSXR1000	All
Suzuki	GSXR1100	All
Suzuki	GSXR600	96-10
Suzuki	GSXR750	96-10
Suzuki	Hayabusa GSX1300R	99-13
Suzuki	SV650	99-02
Suzuki	TL1000	All
Suzuki	V-Strom DL1000	02-13
Triumph	Daytona	06-13
Triumph	Daytona 675	06-13
Triumph	Street Triple R	07-13
Yamaha	YZF-R1	96-02
Yamaha	YZF-R6	03-13
Yamaha	YZF-R6S	06-07

Note:
Certain motorcycles require adding electrical tape to the area of the plug that is the largest diameter until it fits snugly in the stem. RAM recommends that you review the installation instructions for this part prior to ordering.
