Ram Base - 1/4"-20 x 1" Mirror Post Base For Harley Davidson Motorcycles

• Fit Note: Base Only!
• UPC: 793442941924

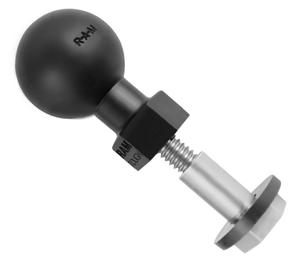

The RAP-B-379-HA1U consists of a 1/4"-20 X 1" thread, connected to a 1" diameter ball, female blind barrel nut and nylon washer.

Features:
1. Base can be mounted above or below mirror holes 2. Rubber ball dampens shock and vibration 3. High strength materials ensure product longevity 4. Lifetime warranty 5. Made in U.S.A.

Material:
High Strength Composite & Steel

Ball Size:
1" Rubber Ball "B" Size

Installation Instructions:
1. Locate fairing mirror holes. 2. Place the nylon washer over the barrel nut. Insert the barrel nut into the hole on the controls. 3. Screw the threaded ball into the barrel nut from the other side of the hole. Tighten with 5/8" and 1/2" wrench.

Note:
The "U" in the part number reflects product packaged in poly bag. The RAP-B-379-HA1U is not compatible with Harley-Davidson motorcycles that are equipped with a hydraulic clutch.
