MVX-2002 Series - Fatbob Gauge Blk/Gry Chr Bzl

Fatbob Gauge Blk/Gry Chr Bzl

• California Prop 65 Warning: Cancer and Reproductive Harm - https://www.p65warnings.ca.gov/
• Color: Black/Grey
• Type: Instrument Cluster

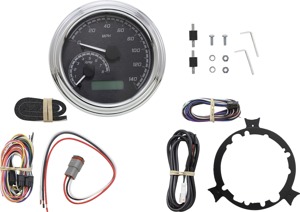

The MVX-2002 Series Fatbob Gauge is a versatile, all-in-one instrument cluster combining an analog speedometer and tachometer with digital readouts for various metrics, including speed, RPM, voltage, and clock. It features a 140-mph speedometer, an 8,000-rpm tachometer with an adjustable shift point, a one-time settable odometer, dual resettable trip meters, and a service countdown timer. Additionally, it offers performance data such as 0-60 mph time, top speed, peak RPM, and quarter-mile time and speed. The unit comes equipped with indicator lights for turn signals, high beam, neutral, low oil pressure, and more. It supports a seven-speed gear position indicator compatible with 3- to 7-speed transmissions, has a low-voltage alert, and features a "wait to start/check engine" function. If the motorcycle is equipped with a factory cylinder head temperature sender unit, temperature readouts are also supported. An oil pressure warning light is available separately. The gauge supports automatic turn signal canceling and displays alerts for security systems, low fuel, cruise, ABS, and check engine status. It includes seven customizable lighting color options for the pointer, backlight, and LCD message center: red, green, blue, teal, magenta, amber, and white. Installation requires a cut-and-splice wiring setup and is not a direct plug-in. The case diameter is 4-1/4", and the bezel diameter is 4-5/8". The unit is compatible with 1996-2003 Harley-Davidson models featuring a 5" gauge tank mount.
