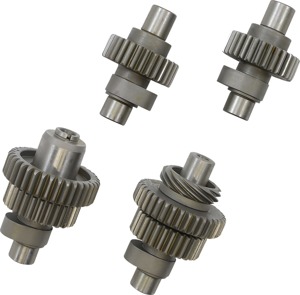

PB+ Cams (4 Cam Set) - for Iron Head Sportsters

for Iron Head Sportsters

• Exhaust Close: 31 Deg.
• Exhaust Duration: 254 Deg.
• Exhaust Lift: 0.410"
• Exhaust Lift at TDC: 0.208"
• Exhaust Lobe Centerline: 96 Deg.
• Exhaust Open: 43 Deg.
• Grind: PB+
• Intake Close: 40 Deg.
• Intake Duration: 254 Deg.
• Intake Lift: 0.400"
• Intake Lift at TDC: 0.208"
• Intake Lobe Centerline: 93 Deg.
• Intake Open: 34 Deg.
• Type: Camshaft

• Bolt-in four-cam set
• More horsepower and torque
• Stock springs OK to 7000 rpm, requires no headwork
• Made in the U.S.A.
• Installer must check coil bind, valve-to-valve clearance, valve-to-piston clearance and cam lobe to case clearance.
