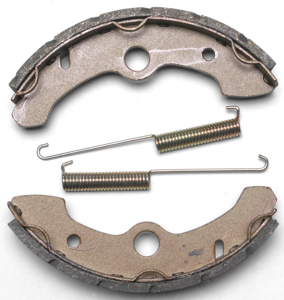

Grooved Organic Front Brake Shoes - 350 Big Bear 400 Kodiak #3HN-W2535-10-00

350 Big Bear 400 Kodiak #3HN-W2535-10-00

• Placement on Vehicle: Front
• Style: "G" Grooved
• Type: Brake Shoe
• UPC: 840655007746
• XREF # - Yamaha: 3HN-W2535-10-00

• Made using high-pressure die-cast aluminum platforms with bonded brake linings
• All shoes are radius-ground and edge trimmed
• Feature lead-out chamfers at lining ends and original-style brake shoe springs
• Multiple-angle liner grooves designed to channel away dirt, dust, water, and debris from the braking surface area to improve performance and extend drum and shoe life

EBC WATER GROOVED series brake shoes are made using either high pressure Die cast aluminum platforms for most two wheel machines or pressed steel platforms for most ATVs with bonded brake linings. All shoes are then radius ground and edge trimmed to fit precisely in your brake drum and also feature lead in and lead out chamfers at lining ends and many include original equipment style brake shoe springs.

The multiple angled liner grooves are designed to channel away dirt, dust,water and debris from the braking area to improve braking and extend shoe and drum life.

In early years mechanics would "Saw" these grooves into liners which we do not recommend even though ZERO EBC brake shoes contain any dangerous fibers.

CAUTION - ALWAYS REPLACE BOTH LEFT AND RIGHT BRAKES AT THE SAME TIME on ATV four wheelers to avoid dangerous side to side brake pull which can cause your vehicle to pull sideways and cause an accident.
